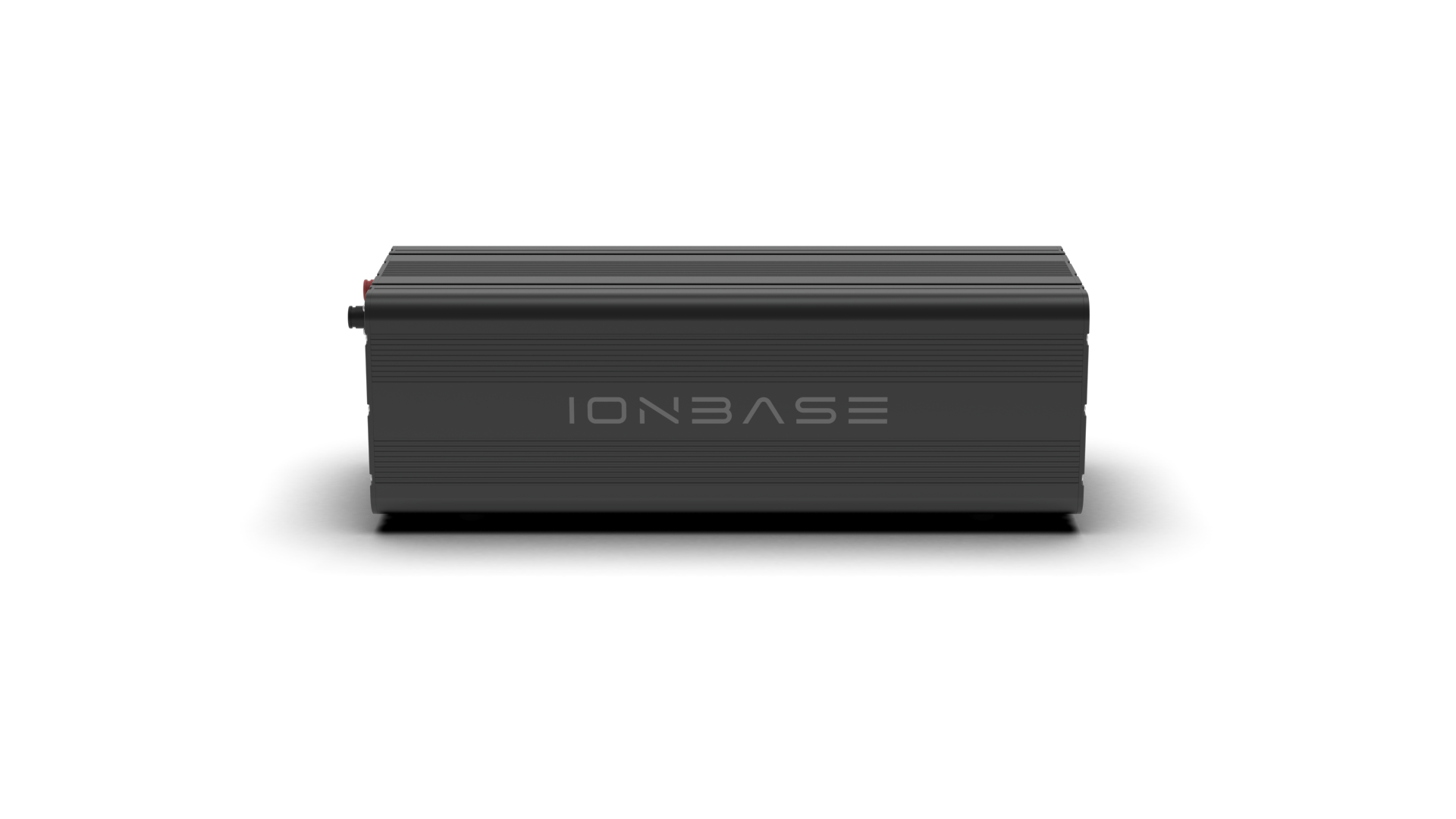

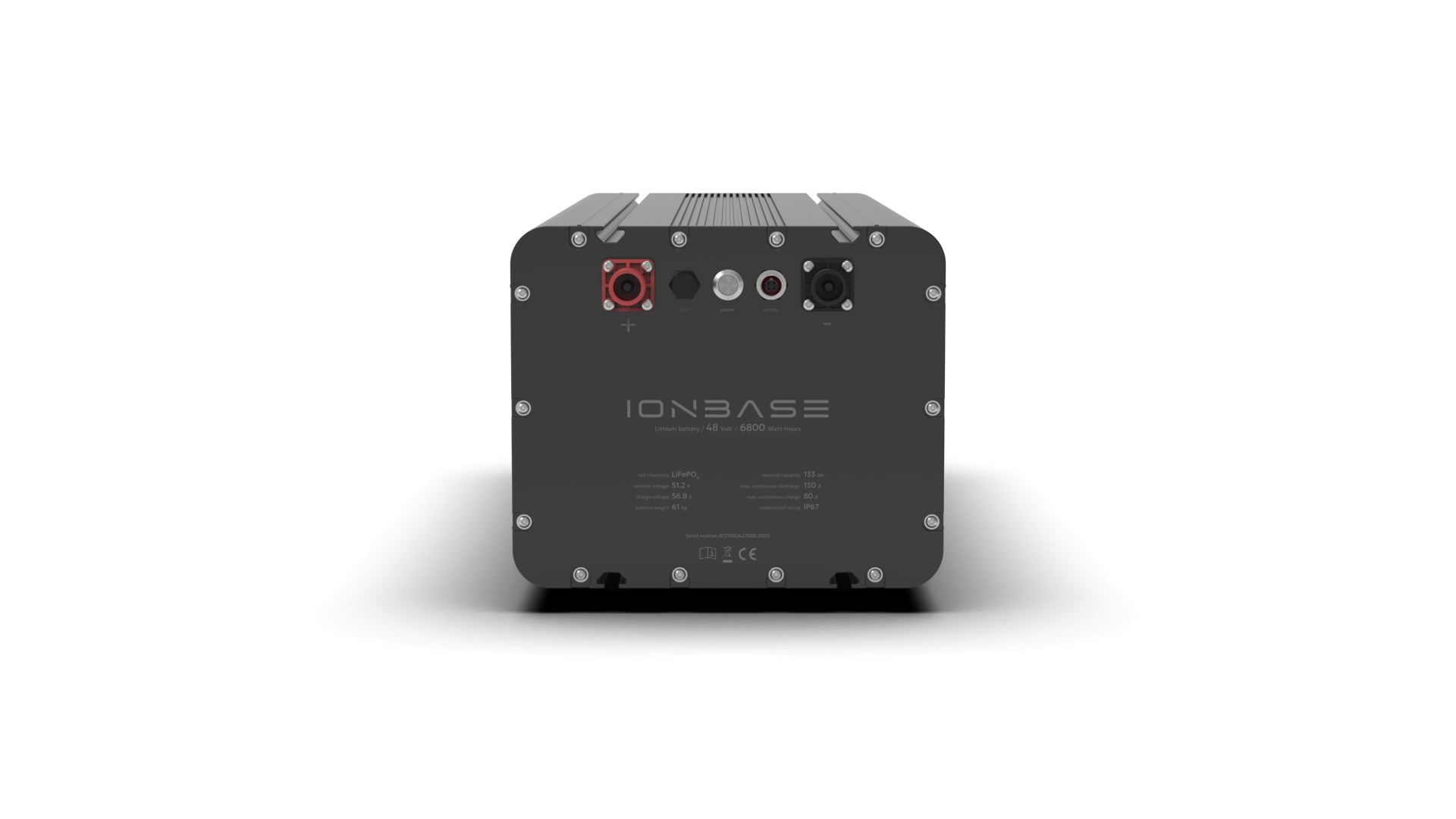

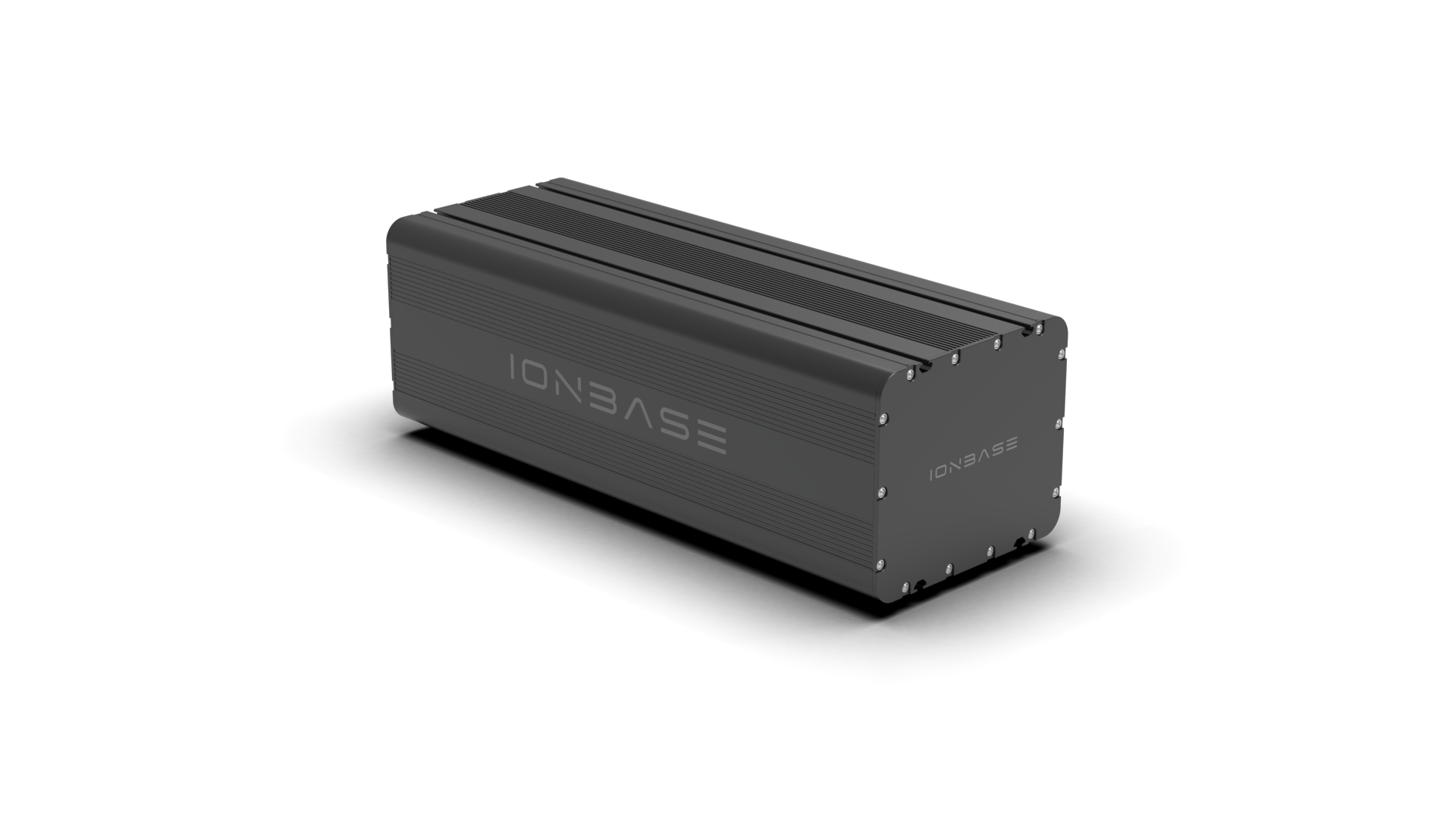

48 Volt – 6800 Watthours
€3.840
in stock Free shipping by
Connect and disconnect your ionbase battery quickly and with ease!
A complete package
A positive and negative Flex Connector for 35mm² cable
is included with this 48 Volt battery
Opening hours: monday – friday from 08:30 to 17:30
check your battery status
All round performance
The 48 Volt 6.8 kWh (133Ah) lithium battery is a powerful and compact battery ideal for a wide range of applications. From drive trains, auxiliary power to industrial work platforms and other industrial equipment, it is ready to power all your needs. Easy to connect and disconnect due to its flex connectors.
Robust and Built to last
Our batteries perform even in the most demanding conditions. The robust aluminium enclosure protects the battery and its electronics from shocks, vibrations, and the environment. The IP67 rating makes sure you don’t have to worry about any dust or water damage. Our batteries are truly built to last.
Safe and Reliable
Safety and reliability are top priority in every aspect of the design. The integrated battery management system (BMS) constantly monitors the battery, ensuring maximum safety and performance. Our cylindrical lithium iron phosphate technology combined with a robust aluminium enclosure makes sure the battery is as safe and reliable as possible. This keeps you and your equipment safe and full of energy at all times.
No Worries
Designed and assembled in the Netherlands to the highest quality standards. With a generous 5 year warranty, virtually zero maintenance, and long cycle life you don’t have to worry about your battery for a very long time.
This 48V battery can be perfectly used for wide varity of applications
Drive train and auxiliary power solutions
Drive trains for golf carts and small electric vehicles
Drive train and Auxiliary power solutions for floor care
Drive train and auxiliary power solutions for construction equipment
Primary power for fork lifts, pallet stackers and trucks
Primary power Mobile elevated work platforms
Our batteries are very versatile, if you need more information for usage in a different application, or you are in need of specialized energy storage systems, please do not hesitate to contact us.
| Lithium Accu | 12V 1700Wh Deep Cycle | 12V 1700Wh Cranking | 12V 3400Wh Deep Cycle | 24V 3400Wh Deep Cycle | 24V 6800Wh Deep Cycle | 48V 3400Wh Deep Cycle | 48V 6800Wh Deep Cycle | 48V 13600Wh Deep Cycle |
|---|---|---|---|---|---|---|---|---|
| Article Number | ION-1217050B/G | ION-1217258R | ION-1234043B | ION-2434036B | ION-2468029B | ION-4834227B | ION-4868005B | ION-4813012B |
| EAN | 8721082427050 | 8721082427258 | 8721082427043 | 8721082427036 | 8721082427029 | 8721082427227 | 8721082427005 | 8721082427012 |
| Nominal energy capacity | 1700 Wh | 1700 Wh | 3400 Wh | 3400 Wh | 6800 Wh | 3400 Wh | 6800 Wh | 13600 Wh |
| Nominal capacity | 133 Ah | 133 Ah | 266 Ah | 133 Ah | 266 Ah | 66.5 Ah | 133 Ah | 266 Ah |
| Useable capacity | 129 Ah | 129 Ah | 258 Ah | 129 Ah | 258 Ah | 65 Ah | 129 Ah | 258 Ah |
| Capacity @25A | 310 min | 310 min | 620 min | 310 min | 620 min | 155 min | 310 min | 620 min |
| Nominal voltage | 12,8 V | 12,8 V | 12,8 V | 25,6 V | 25,6 V | 51,2 V | 51,2 V | 51,2 V |
| Charging voltage | 14,2 V | 14,2 V | 14,2 V | 28,4 V | 28,4 V | 56,8 V | 56,8 V | 56,8 V |
| Discharging voltage | 10,8 V | 10,8 V | 10,8 V | 21,6 V | 21,6 V | 43,2 V | 43,2 V | 43,2 V |
| Continuous discharge rate | 150 A | 200 A | 150 A | 150 A | 150 A | 100 A | 150 A | 150 A |
| Max quick charge | 80 A | 100 A | 130 A | 80 A | 130 A | 60 A | 80 A | 130 A |
| Max peak discharge rate (2s) | 300 A | 500 A | 400 A | 300 A | 400 A | 200 A | 300 A | 400 A |
| Max peak discharge rate (10s) | 200 A | 400 A | 300 A | 200 A | 300 A | 150 A | 200 A | 300 A |
| Weight | 19 kg | 19 kg | 34 kg | 34 kg | 61 kg | 33 kg | 61 kg | 119 kg |
| Length (+- 5mm) | 242 mm | 242 mm | 392 mm | 392 mm | 695 mm | 397mm | 695 mm | 1295 mm |
| Width (+- 2mm) | 253 mm | 253 mm | 253 mm | 253 mm | 253 mm | 253 mm | 253 mm | 253 mm |
| Height exluding feet (+- 2mm) | 212 mm | 212 mm | 212 mm | 212 mm | 212 mm | 212 mm | 212 mm | 212 mm |
| Square shape volume | 13 L | 13 L | 21 L | 21 L | 37 L | 21 L | 37 L | 69 L |
| Height including feet | 227 mm | 227 mm | 227 mm | 227 mm | 227 mm | 227 mm | 227 mm | 227 mm |
| Battery | 12V 1700Wh Deep Cycle | 12V 1700Wh Cranking | 12V 3400Wh Deep Cycle | 24V 3400Wh Deep Cycle | 24V 6800Wh Deep Cycle | 48V 3400Wh Deep Cycle | 48V 6800Wh Deep Cycle | 48V 13600Wh Deep Cycle |
|---|---|---|---|---|---|---|---|---|
| Ambient temperature discharging | -18 up to 55 °C | -18 up to 55 °C | -18 up to 55 °C | -18 up to 55 °C | -18 up to 55 °C | -18 up to 55 °C | -18 up to 55 °C | -18 up to 55 °C |
| Ambient temperature charging | 2 up to 45 °C | 2 up to 45 ° | 2 up to 45 °C | 2 up to 45 °C | 2 up to 45 ° | 2 up to 45 °C | 2 up to 45 ° | 2 up to 45 °C |
| Ambient temperature storage | -25 up to 55 °C | -25 up to 55 °C | -25 up to 55 °C | -25 up to 55 °C | -25 up to 55 °C | -25 up to 55 °C | -25 up to 55 °C | -25 up to 55 °C |
| Typical storage time at 50% SOC | 40 weeks | 40 weeks | 40 weeks | 40 weeks | 40 weeks | 40 weeks | 40 weeks | 40 weeks |
| Max connections | Up to 1S8P | Up to 1S8P | Up to 1S8P | Up to 2S8P | Up to 2S8P | Up to 1S8P | Up to 1S8P | Up to 1S8P |
| Protection class (excl. Salt water) | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Battery | 12V 1700Wh Deep Cycle | 12V 1700Wh Cranking | 12V 3400Wh Deep Cycle | 24V 3400Wh Deep Cycle | 24V 6800Wh Deep Cycle | 48V 3400Wh Deep Cycle | 48V 6800Wh Deep Cycle | 48V 13600Wh Deep Cycle |
|---|---|---|---|---|---|---|---|---|
| Cell type | Cylindrical | Cylindrical | Cylindrical | Cylindrical | Cylindrical | Cylindrical | Cylindrical | Cylindrical |
| Chemistry | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 | LiFePo4 |
| Capacity per cell | 6,05 Ah | 6,05 Ah | 6,05 Ah | 6,05 Ah | 6,05 Ah | 6,05 Ah | 6,05 Ah | 6,05 Ah |
| Nominal voltage per cell | 3,2 V | 3,2 V | 3,2 V | 3,2 V | 3,2 V | 3,2 V | 3,2 V | 3,2 V |
| Cell configuration | 4s22p | 4s22p | 4s44p | 8s22p | 8s44p | 16s11p | 16s22p | 16s44p |
| Battery | 12V 1700Wh Deep Cycle | 12V 1700Wh Cranking | 12V 3400Wh Deep Cycle | 24V 3400Wh Deep Cycle | 24V 6800Wh Deep Cycle | 48V 3400Wh Deep Cycle | 48V 6800Wh Deep Cycle | 48V 13600Wh Deep Cycle |
|---|---|---|---|---|---|---|---|---|
| On-off switch | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Terminals | M8 screw F | M8 screw F | M8 screw F | M8 screw F | M8 screw F | Flex | Flex | Flex |
| Cell balancing, passive | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| High current & short circuit protection | Yes, up to 1500A | Yes, up to 1500A | Yes, up to 1500A | Yes, up to 1500A | Yes, up to 1500A | Yes, up to 1500A | Yes, up to 1500A | Yes, up to 1500A |
| Deep discharge protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Protection against polarity reversal | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Individual cell string voltage monitoring | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Safety vent for each cell | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Cell temperature monitoring | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Temp. monitoring battery electronics | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Shipping classification | UN3480, CLASS 9 | UN3480, CLASS 9 | UN3480, CLASS 9 | UN3480, CLASS 9 | UN3480, CLASS 9 | UN3480, CLASS 9 | UN3480, CLASS 9 | UN3480, CLASS 9 |
| Certifications/compliance battery | CE, UN38.3, RoHS | CE, UN38.3, RoHS | CE, UN38.3, RoHS | CE, UN38.3, RoHS | CE, UN38.3, RoHS | CE, UN38.3, RoHS | CE, UN38.3, RoHS | CE, UN38.3, RoHS |
| Certifications/compliance battery cells | UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3 | UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3 | UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3 | UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3 | UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3 | UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3 | UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3 | UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3 |
| Battery | 12V 1700Wh Deep Cycle | 12V 1700Wh Cranking | 12V 3400Wh Deep Cycle | 24V 3400Wh Deep Cycle | 24V 6800Wh Deep Cycle | 48V 3400Wh Deep Cycle | 48V 6800Wh Deep Cycle | 48V 13600Wh Deep Cycle |
|---|---|---|---|---|---|---|---|---|
| Cycle lifetime with 80% discharge depth at 25°C to capacity loss of 20% at 0.5C | >4000 | >4000 | >4000 | >4000 | >4000 | >4000 | >4000 | >4000 |
| Average annual capacity loss at 25 °C | 2% | 2% | 2% | 2% | 2% | 2% | 2% | 2% |
| Ideal storage temperature | -10 up to 30 °C | -10 up to 30 °C | -10 up to 30 °C | -10 up to 30 °C | -10 up to 30 °C | -10 up to 30 °C | -10 up to 30 °C | -10 up to 30 °C |
