IONBASE Lithium Battery 12V 1700Wh Cranking Red - with handle

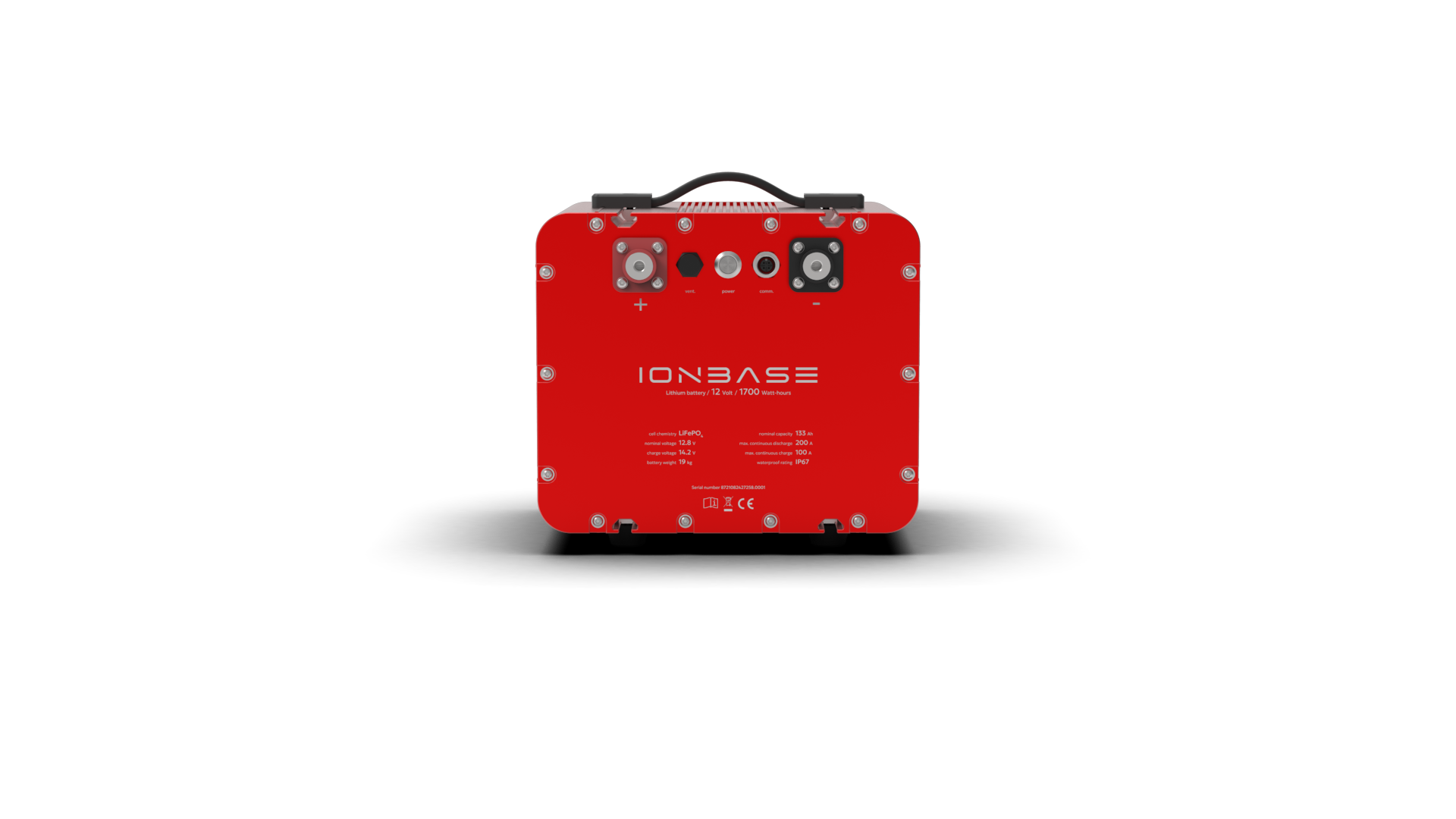

IONBASE Lithium Battery 12V 1700Wh Cranking Red- Front view

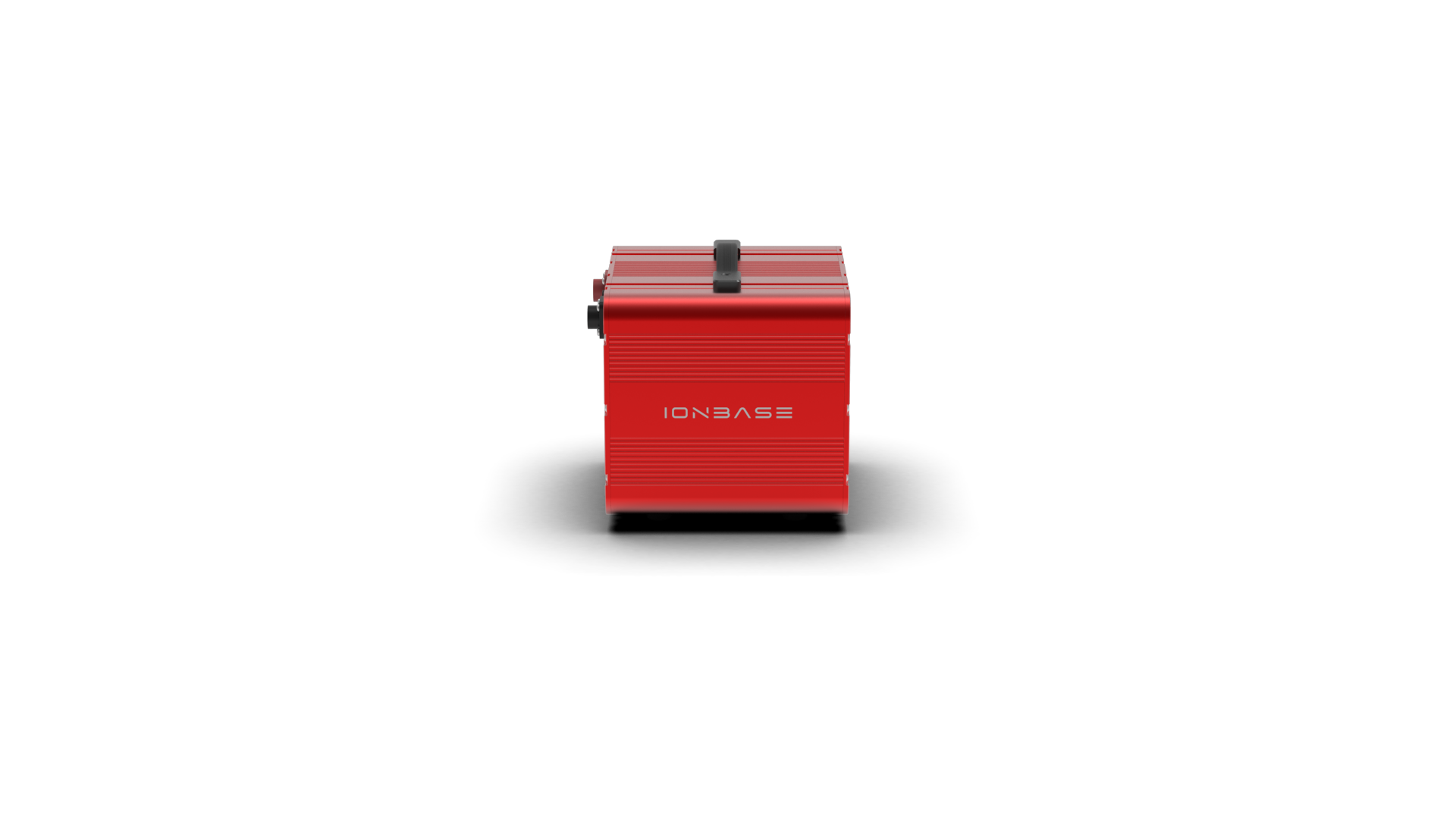

IONBASE Lithium Battery 12V 1700Wh Cranking Red - Side view

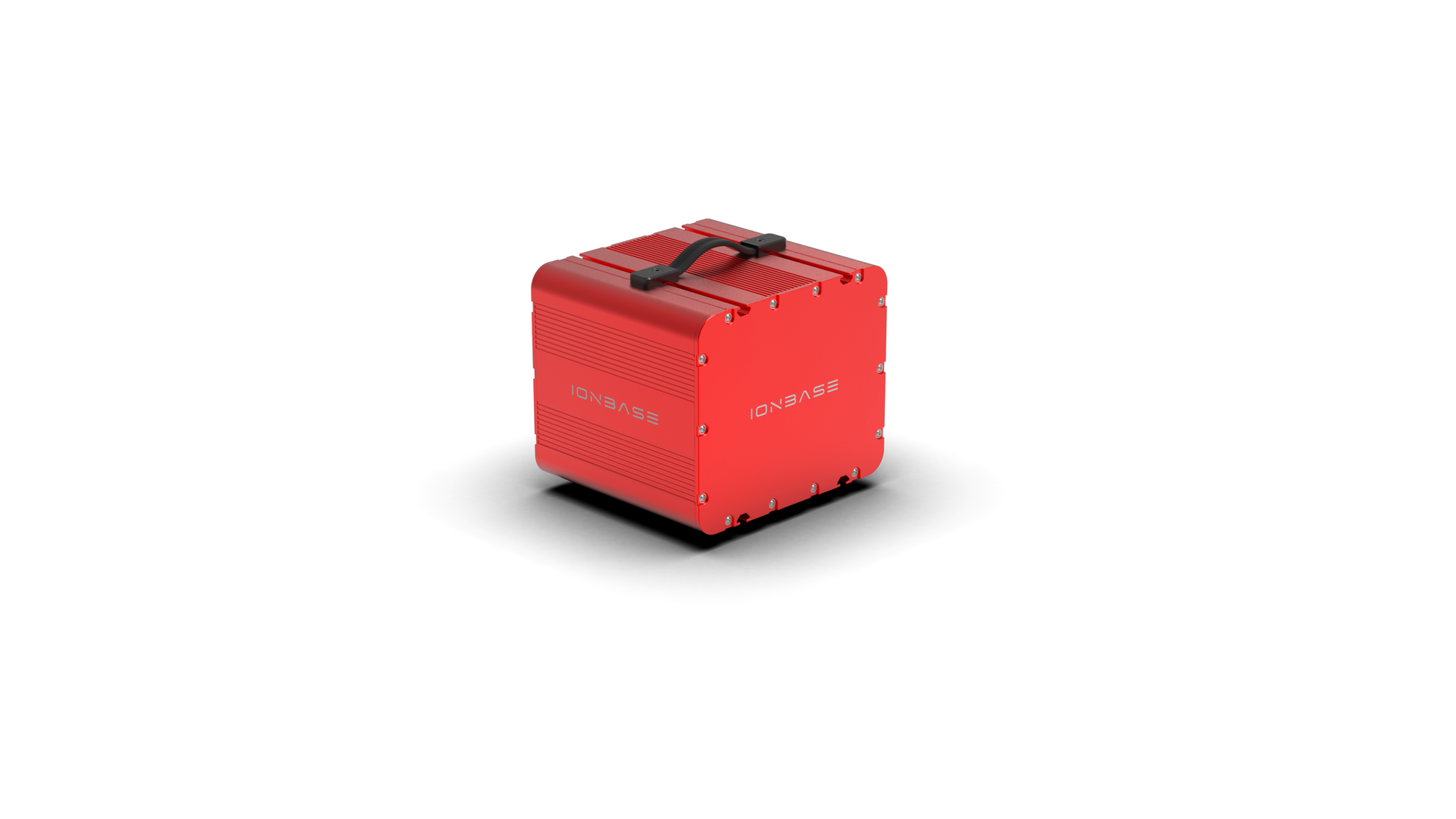

IONBASE Lithium Battery 12V 1700Wh Cranking Red - Rear view

12 Volt – 1700 Watthours

Lithium Battery 12V – 133Ah (1700Wh) Cranking Red

Request Quotation
  • Designed & Assembled in NL
  • 3 year warranty
Battery Specifications

Lithium Battery 12V – 133Ah (1700Wh) Cranking Red

Request Quotation


Combining the advantages of our lithium deep cycle battery technology
with extremely powerful cranking capabilities!

This cranking battery will cover all your energy needs.

Incredibly powerful, yet portable, durable, safe
and seriously smart with an integrated BMS & communicating app.

Voltage
3
Watt-Hours
1000
Ampere Hours
50
Kilograms
10
IP Rating
20
  • Modular design
  • Low maintenance
  • Safe LiFePo4 chemistry
  • High discharge currents
  • High cycle life
  • Low self discharge
  • Fast charging
  • Monitoring app

Standard
Deep Cycle

-

Deep Cycle + Cranking

Deep Cycle +Cranking

50
Continuous discharge current
50
150
Peak discharge current
for 10 seconds
200
200
Peak discharge current
for 2 seconds
200
80
Continuous charge current
100

All our batteries are
designed and manufactured
in The Netherlands

IONBASE-500.svg

battery monitoring app

check your battery status

Small volume, very powerful
This 12 Volt 1.7 kWh (133Ah) lithium battery is capable of deep cycles and high discharge rates. With discharge peaks of 500 amps and 200 A continuous, this powerful and compact battery is ideal for applications that require a higher current. The stable Voltage of the lithium battery gives you a lot of power. The cranking red battery is ready to power all your needs!

Robust and Built to last
Our batteries perform even in the most demanding conditions. The robust aluminium enclosure protects the battery and its electronics from shocks, vibrations, and the environment. The IP67 rating makes sure you don’t have to worry about any dust or water damage. Our batteries are truly built to last.

Safe and Reliable
Safety and reliability are top priority in every aspect of the design. The integrated battery management system (BMS) constantly monitors the battery, ensuring maximum safety and performance. Our cylindrical lithium iron phosphate technology combined with a robust aluminium enclosure makes sure the battery is as safe and reliable as possible. This keeps you and your equipment safe and full of energy at all times.

No Worries
Designed and assembled in the Netherlands to the highest quality standards. With a generous 5 year warranty, virtually zero maintenance, and long cycle life you don’t have to worry about your battery for a very long time.

IP67
Waterproof enclosure

Applications

This 12V battery can be perfectly used for wide varity of applications

Marine

Trolling motor and auxiliary power solutions

Recreational vehicles

Deep cycle home batteries for RV's, Campers and Camper vans

Floor Care

Drive train and auxiliary power solutions for floor care

Work platforms

Primary power for mobile elevated work platforms

Your application not listed?

Our batteries are very versatile, if you need more information for usage in a different application, or you are in need of specialized energy storage systems, please do not hesitate to contact us.

Contact us

our most powerful

12 volt battery

Battery Specifications

General features
Lithium Accu12V 1700Wh
Deep Cycle		12V 1700Wh
Cranking		12V 3400Wh
Deep Cycle		24V 3400Wh
Deep Cycle		24V 6800Wh
Deep Cycle		48V 3400Wh
Deep Cycle		48V 6800Wh
Deep Cycle		48V 13600Wh
Deep Cycle
Article NumberION-1217050B/GION-1217258RION-1234043BION-2434036BION-2468029BION-4834227BION-4868005BION-4813012B
EAN87210824270508721082427258872108242704387210824270368721082427029872108242722787210824270058721082427012
Nominal energy capacity1700 Wh1700 Wh3400 Wh3400 Wh6800 Wh3400 Wh6800 Wh13600 Wh
Nominal capacity133 Ah133 Ah266 Ah133 Ah266 Ah66.5 Ah133 Ah266 Ah
Useable capacity129 Ah129 Ah258 Ah129 Ah258 Ah65 Ah129 Ah258 Ah
Capacity @25A310 min310 min620 min310 min620 min155 min310 min620 min
Nominal voltage12,8 V12,8 V12,8 V25,6 V25,6 V51,2 V51,2 V51,2 V
Charging voltage14,2 V14,2 V14,2 V28,4 V28,4 V56,8 V56,8 V56,8 V
Discharging voltage10,8 V10,8 V10,8 V21,6 V21,6 V43,2 V43,2 V43,2 V
Continuous discharge rate150 A200 A150 A150 A150 A100 A150 A150 A
Max quick charge80 A100 A130 A80 A130 A60 A80 A130 A
Max peak discharge rate (2s)300 A500 A400 A300 A400 A200 A300 A400 A
Max peak discharge rate (10s)200 A400 A300 A200 A300 A150 A200 A300 A
Weight19 kg19 kg34 kg34 kg61 kg33 kg61 kg119 kg
Length (+- 5mm)242 mm242 mm392 mm392 mm695 mm397mm695 mm1295 mm
Width (+- 2mm)253 mm253 mm253 mm253 mm253 mm253 mm253 mm253 mm
Height exluding feet (+- 2mm)212 mm212 mm212 mm212 mm212 mm212 mm212 mm212 mm
Square shape volume13 L13 L21 L21 L37 L21 L37 L69 L
Height including feet227 mm227 mm227 mm227 mm227 mm227 mm227 mm227 mm
Battery12V 1700Wh
Deep Cycle		12V 1700Wh
Cranking		12V 3400Wh
Deep Cycle		24V 3400Wh
Deep Cycle		24V 6800Wh
Deep Cycle		48V 3400Wh
Deep Cycle		48V 6800Wh
Deep Cycle		48V 13600Wh
Deep Cycle
Ambient temperature discharging-18 up to 55 °C-18 up to 55 °C-18 up to 55 °C-18 up to 55 °C-18 up to 55 °C-18 up to 55 °C-18 up to 55 °C-18 up to 55 °C
Ambient temperature charging2 up to 45 °C2 up to 45 °2 up to 45 °C2 up to 45 °C2 up to 45 °2 up to 45 °C2 up to 45 °2 up to 45 °C
Ambient temperature storage-25 up to 55 °C-25 up to 55 °C-25 up to 55 °C-25 up to 55 °C-25 up to 55 °C-25 up to 55 °C-25 up to 55 °C-25 up to 55 °C
Typical storage time at 50% SOC40 weeks40 weeks40 weeks40 weeks40 weeks40 weeks40 weeks40 weeks
Max connectionsUp to 1S8PUp to 1S8PUp to 1S8PUp to 2S8PUp to 2S8PUp to 1S8PUp to 1S8PUp to 1S8P
Protection class (excl. Salt water)IP67IP67IP67IP67IP67IP67IP67IP67
Battery12V 1700Wh
Deep Cycle		12V 1700Wh
Cranking		12V 3400Wh
Deep Cycle		24V 3400Wh
Deep Cycle		24V 6800Wh
Deep Cycle		48V 3400Wh
Deep Cycle		48V 6800Wh
Deep Cycle		48V 13600Wh
Deep Cycle
Cell typeCylindricalCylindricalCylindricalCylindricalCylindricalCylindricalCylindricalCylindrical
ChemistryLiFePo4LiFePo4LiFePo4LiFePo4LiFePo4LiFePo4LiFePo4LiFePo4
Capacity per cell6,05 Ah6,05 Ah6,05 Ah6,05 Ah6,05 Ah6,05 Ah6,05 Ah6,05 Ah
Nominal voltage per cell3,2 V3,2 V3,2 V3,2 V3,2 V3,2 V3,2 V3,2 V
Cell configuration4s22p4s22p4s44p8s22p8s44p16s11p16s22p16s44p
Battery12V 1700Wh
Deep Cycle		12V 1700Wh
Cranking		12V 3400Wh
Deep Cycle		24V 3400Wh
Deep Cycle		24V 6800Wh
Deep Cycle		48V 3400Wh
Deep Cycle		48V 6800Wh
Deep Cycle		48V 13600Wh
Deep Cycle
On-off switchYesYesYesYesYesYesYesYes
TerminalsM8 screw FM8 screw FM8 screw FM8 screw FM8 screw FFlexFlexFlex
Cell balancing, passiveYesYesYesYesYesYesYesYes
High current & short circuit protectionYes, up to 1500AYes, up to 1500AYes, up to 1500AYes, up to 1500AYes, up to 1500AYes, up to 1500AYes, up to 1500AYes, up to 1500A
Deep discharge protectionYesYesYesYesYesYesYesYes
Protection against polarity reversalYesYesYesYesYesYesYesYes
Individual cell string voltage monitoringYesYesYesYesYesYesYesYes
Safety vent for each cellYesYesYesYesYesYesYesYes
Cell temperature monitoringYesYesYesYesYesYesYesYes
Temp. monitoring battery electronicsYesYesYesYesYesYesYesYes
Shipping classificationUN3480, CLASS 9UN3480, CLASS 9UN3480, CLASS 9UN3480, CLASS 9UN3480, CLASS 9UN3480, CLASS 9UN3480, CLASS 9UN3480, CLASS 9
Certifications/compliance batteryCE, UN38.3, RoHSCE, UN38.3, RoHSCE, UN38.3, RoHSCE, UN38.3, RoHSCE, UN38.3, RoHSCE, UN38.3, RoHSCE, UN38.3, RoHSCE, UN38.3, RoHS
Certifications/compliance battery cellsUL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3
Battery12V 1700Wh
Deep Cycle		12V 1700Wh
Cranking		12V 3400Wh
Deep Cycle		24V 3400Wh
Deep Cycle		24V 6800Wh
Deep Cycle		48V 3400Wh
Deep Cycle		48V 6800Wh
Deep Cycle		48V 13600Wh
Deep Cycle
Cycle lifetime with 80% discharge depth at 25°C to capacity loss of 20% at 0.5C>4000>4000>4000>4000>4000>4000>4000>4000
Average annual capacity loss at 25 °C2%2%2%2%2%2%2%2%
Ideal storage temperature-10 up to 30 °C-10 up to 30 °C-10 up to 30 °C-10 up to 30 °C-10 up to 30 °C-10 up to 30 °C-10 up to 30 °C-10 up to 30 °C
