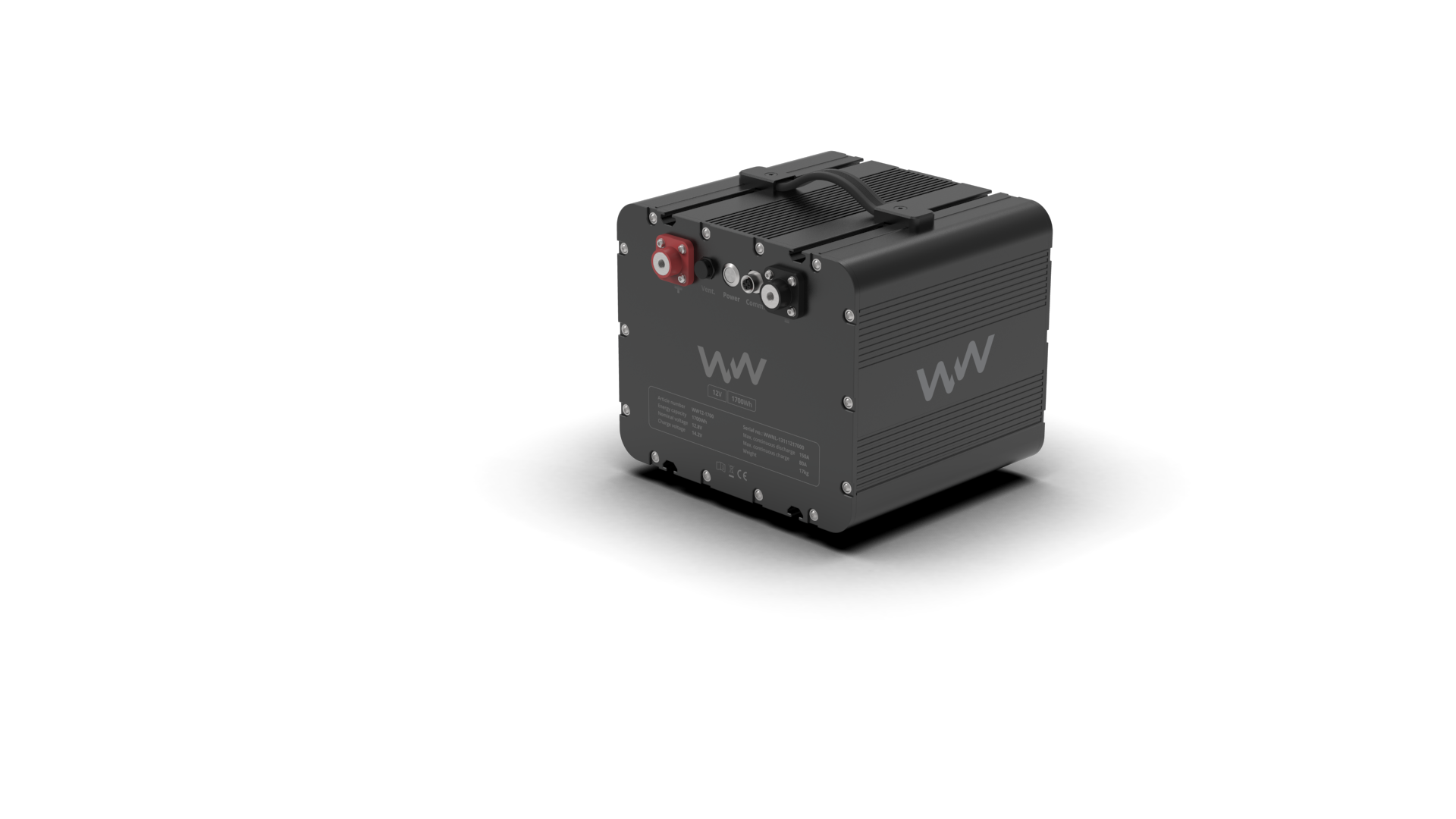

Waterworld Battery WW12-1700 - With Handle

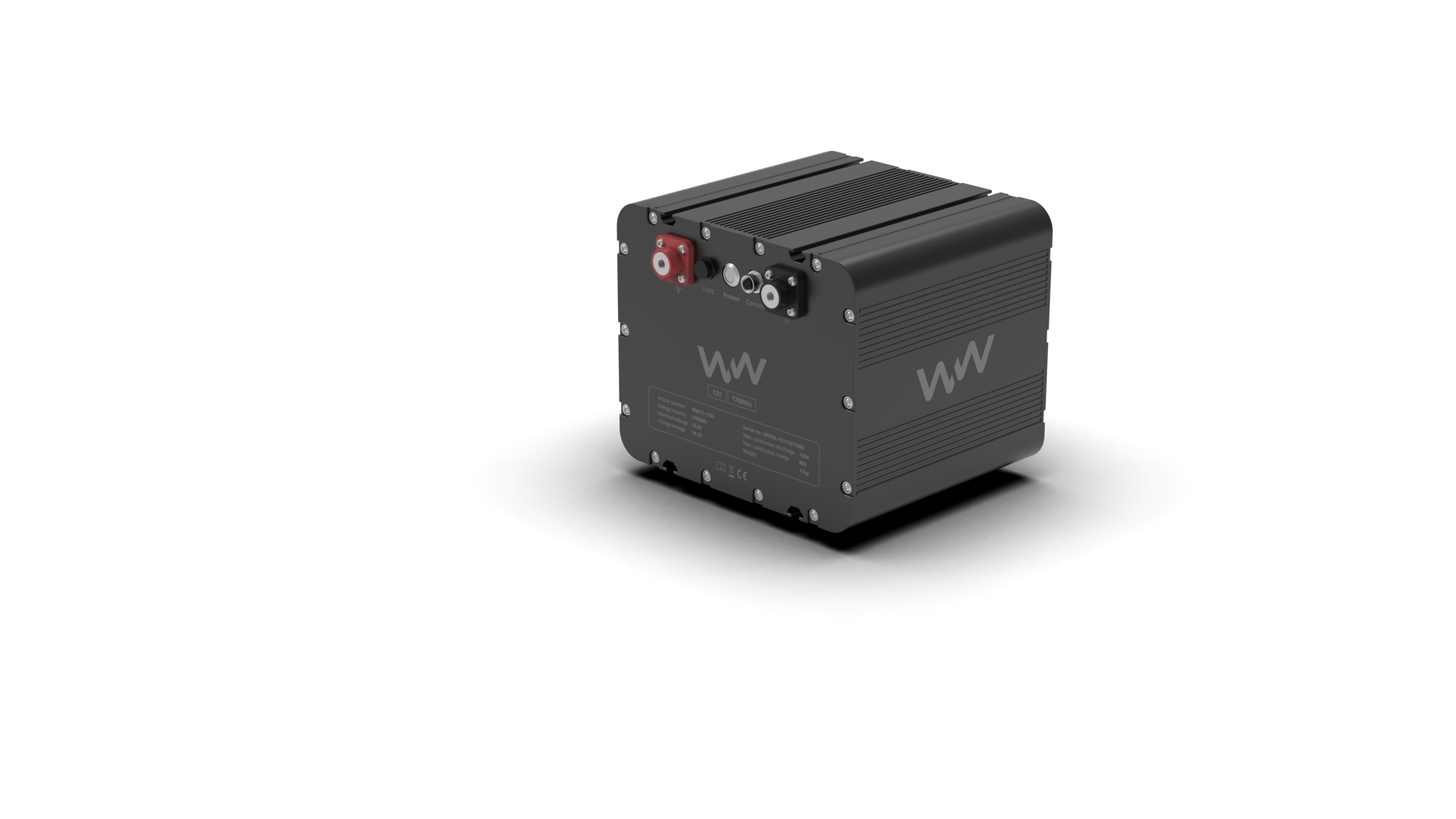

Waterworld Lithium Accu 12V 1700Wh

Part of a fully integrated system

The Waterworld Batteries are designed and Manufacured by IONBASE in the Netherlands. From batteries, the propulsion systems to the software that powers them all is done in-house by Waterwold and IONBASE.

Battery Specifications

General features

Lithium Accu	12V 1700Wh Deep Cycle	12V 1700Wh Cranking	12V 3400Wh Deep Cycle	24V 3400Wh Deep Cycle	24V 6800Wh Deep Cycle	48V 3400Wh Deep Cycle	48V 6800Wh Deep Cycle	48V 13600Wh Deep Cycle
Article Number	WW-81012017	WW-81112017	WW-81012034	WW-81024034	WW-81024068	WW-81048034	WW-81048068	WW-81048136
Nominal energy capacity	1700 Wh	1700 Wh	3400 Wh	3400 Wh	6800 Wh	3400 Wh	6800 Wh	13600 Wh
Nominal capacity	133 Ah	133 Ah	266 Ah	133 Ah	266 Ah	66.5 Ah	133 Ah	266 Ah
Useable capacity	129 Ah	129 Ah	258 Ah	129 Ah	258 Ah	65 Ah	129 Ah	258 Ah
Capacity @25A	310 min	310 min	620 min	310 min	620 min	155 min	310 min	620 min
Nominal voltage	12,8 V	12,8 V	12,8 V	25,6 V	25,6 V	51,2 V	51,2 V	51,2 V
Charging voltage	14,2 V	14,2 V	14,2 V	28,4 V	28,4 V	56,8 V	56,8 V	56,8 V
Discharging voltage	10,8 V	10,8 V	10,8 V	21,6 V	21,6 V	43,2 V	43,2 V	43,2 V
Continuous discharge rate	150 A	200 A	150 A	150 A	150 A	100 A	150 A	150 A
Max quick charge	80 A	100 A	100 A	80 A	130 A	60 A	80 A	130 A
Max peak discharge rate (2s)	300 A	500 A	400 A	300 A	400 A	200 A	300 A	400 A
Max peak discharge rate (10s)	200 A	400 A	300 A	200 A	300 A	150 A	200 A	300 A
Weight	19 kg	19 kg	34 kg	34 kg	61 kg	33 kg	61 kg	119 kg
Length (+- 5mm)	242 mm	242 mm	392 mm	392 mm	695 mm	397mm	695 mm	1295 mm
Width (+- 2mm)	253 mm	253 mm	253 mm	253 mm	253 mm	253 mm	253 mm	253 mm
Height exluding feet (+- 2mm)	212 mm	212 mm	212 mm	212 mm	212 mm	212 mm	212 mm	212 mm
Square shape volume	13 L	13 L	21 L	21 L	37 L	21 L	37 L	69 L
Height including feet	227 mm	227 mm	227 mm	227 mm	227 mm	227 mm	227 mm	227 mm

Use information

Battery	12V 1700Wh Deep Cycle	12V 1700Wh Cranking	12V 3400Wh Deep Cycle	24V 3400Wh Deep Cycle	24V 6800Wh Deep Cycle	48V 3400Wh Deep Cycle	48V 6800Wh Deep Cycle	48V 13600Wh Deep Cycle
Ambient temperature discharging	-18 up to 55 °C	-18 up to 55 °C	-18 up to 55 °C	-18 up to 55 °C	-18 up to 55 °C	-18 up to 55 °C	-18 up to 55 °C	-18 up to 55 °C
Ambient temperature charging	2 up to 45 °C	2 up to 45 °	2 up to 45 °C	2 up to 45 °C	2 up to 45 °	2 up to 45 °C	2 up to 45 °	2 up to 45 °C
Ambient temperature storage	-25 up to 55 °C	-25 up to 55 °C	-25 up to 55 °C	-25 up to 55 °C	-25 up to 55 °C	-25 up to 55 °C	-25 up to 55 °C	-25 up to 55 °C
Typical storage time at 50% SOC	40 weeks	40 weeks	40 weeks	40 weeks	40 weeks	40 weeks	40 weeks	40 weeks
Max connections	Up to 1S8P	Up to 1S8P	Up to 1S8P	Up to 2S8P	Up to 2S8P	Up to 1S8P	Up to 1S8P	Up to 1S8P
Protection class (excl. Salt water)	IP67	IP67	IP67	IP67	IP67	IP67	IP67	IP67

Battery composition

Battery	12V 1700Wh Deep Cycle	12V 1700Wh Cranking	12V 3400Wh Deep Cycle	24V 3400Wh Deep Cycle	24V 6800Wh Deep Cycle	48V 3400Wh Deep Cycle	48V 6800Wh Deep Cycle	48V 13600Wh Deep Cycle
Cell type	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical	Cylindrical
Chemistry	LiFePo4	LiFePo4	LiFePo4	LiFePo4	LiFePo4	LiFePo4	LiFePo4	LiFePo4
Capacity per cell	6,05 Ah	6,05 Ah	6,05 Ah	6,05 Ah	6,05 Ah	6,05 Ah	6,05 Ah	6,05 Ah
Nominal voltage per cell	3,2 V	3,2 V	3,2 V	3,2 V	3,2 V	3,2 V	3,2 V	3,2 V
Cell configuration	4s22p	4s22p	4s44p	8s22p	8s44p	16s11p	16s22p	16s44p

Battery management & Safety

Battery	12V 1700Wh Deep Cycle	12V 1700Wh Cranking	12V 3400Wh Deep Cycle	24V 1700Wh Deep Cycle	24V 3400Wh Deep Cycle	24V 6800Wh Deep Cycle	36V 2500Wh Deep Cycle	36V 5100Wh Deep Cycle	48V 3400Wh Deep Cycle	48V 6800Wh Deep Cycle	48V 13600Wh Deep Cycle
On-off switch	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Terminals	M8 screw F	M8 screw F	M8 screw F	M8 screw F	M8 screw F	M8 screw F	M8 screw F	M8 screw F	Flex	Flex	Flex
Cell balancing, passive	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
High current & short circuit protection	Yes, up to 1500A	Yes, up to 1500A	Yes, up to 1500A	Yes, up to 1500A	Yes, up to 1500A	Yes, up to 1500A	Yes, up to 1500A	Yes, up to 1500A	Yes, up to 1500A	Yes, up to 1500A	Yes, up to 1500A
Deep discharge protection	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Protection against polarity reversal	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Individual cell string voltage monitoring	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Safety vent for each cell	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Cell temperature monitoring	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Temp. monitoring battery electronics	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Shipping classification	UN3480, CLASS 9	UN3480, CLASS 9	UN3480, CLASS 9	UN3480, CLASS 9	UN3480, CLASS 9	UN3480, CLASS 9	UN3480, CLASS 9	UN3480, CLASS 9	UN3480, CLASS 9	UN3480, CLASS 9	UN3480, CLASS 9
Certifications/compliance battery	CE, UN38.3, RoHS	CE, UN38.3, RoHS	CE, UN38.3, RoHS	CE, UN38.3, RoHS	CE, UN38.3, RoHS	CE, UN38.3, RoHS	CE, UN38.3, RoHS	CE, UN38.3, RoHS	CE, UN38.3, RoHS	CE, UN38.3, RoHS	CE, UN38.3, RoHS
Certifications/compliance battery cells	UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3	UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3	UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3	UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3	UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3	UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3	UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3	UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3	UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3	UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3	UL, CE, IEC62133, IEC62619, IEC61960, BIS, PSE, RoHS, UN38.3

Lifetime data

Battery	12V 1700Wh Deep Cycle	12V 1700Wh Cranking	12V 3400Wh Deep Cycle	24V 3400Wh Deep Cycle	24V 6800Wh Deep Cycle	48V 3400Wh Deep Cycle	48V 6800Wh Deep Cycle	48V 13600Wh Deep Cycle
Cycle lifetime with 80% discharge depth at 25°C to capacity loss of 20% at 0.5C	>4000	>4000	>4000	>4000	>4000	>4000	>4000	>4000
Average annual capacity loss at 25 °C	2%	2%	2%	2%	2%	2%	2%	2%
Ideal storage temperature	-10 up to 30 °C	-10 up to 30 °C	-10 up to 30 °C	-10 up to 30 °C	-10 up to 30 °C	-10 up to 30 °C	-10 up to 30 °C	-10 up to 30 °C
